With the continuous advancement of infrastructure construction, the standardization of mining resource development, and the implementation of policies for the resource utilization of construction waste, the demand in the crushing industry for efficient, energy-saving, and high-quality crushing equipment is steadily rising. Among various crushing equipment, the VSI impact crusher, with its unique crushing principle and excellent fine-crushing performance, has become a core device for manufactured sand production, fine-crushing operations in mining, and construction waste processing, and is highly favored by the industry. Today, we will comprehensively analyze this 'crushing weapon' to see why it has become a key enabler for high-quality development in the industry.

Getting to Know the VSI Impact Crusher: Unique Crushing Principle

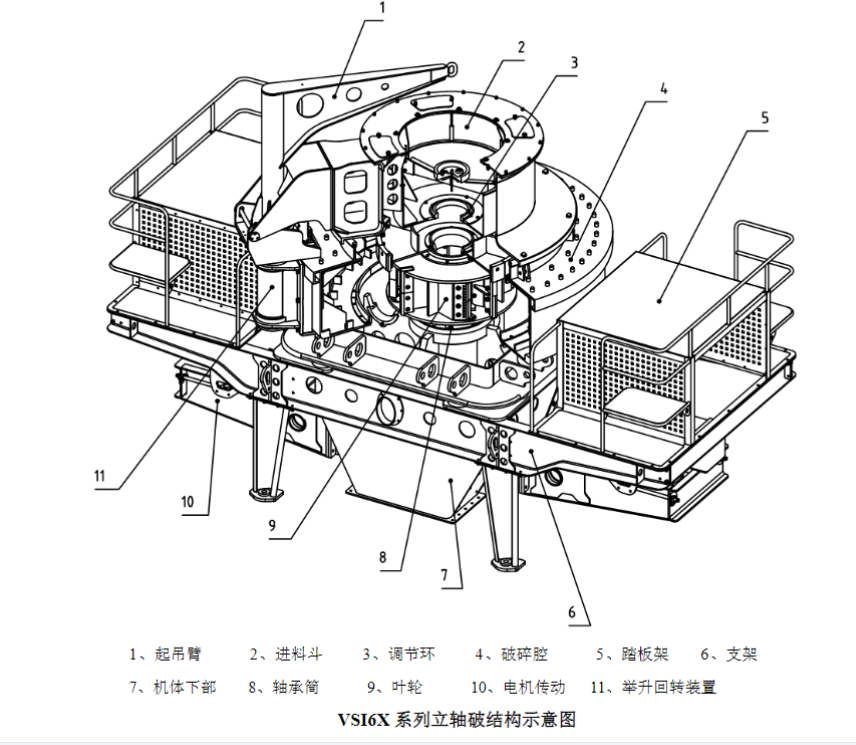

The VSI impact crusher (also known as the vertical shaft impact crusher) is a type of equipment that uses impact energy to crush materials. Its core crushing principle is different from traditional jaw crushers and cone crushers, mainly adopting two crushing modes: 'stone-on-stone' and 'stone-on-iron,' which can be flexibly switched based on the characteristics of the material and crushing requirements.

In the 'stone-on-stone' mode, after the materials enter the crushing chamber, they are accelerated and thrown out by the high-speed rotating impeller, colliding violently with the material lining on the chamber walls. Additionally, the materials collide and rub against each other, ultimately achieving the crushing effect. This mode is suitable for materials with higher hardness (such as granite and basalt), causing less wear on the equipment during the crushing process and producing a more uniform particle shape in the final product.

In the 'stone-on-iron' mode, after being thrown out by the impeller, the materials directly hit the wear-resistant liners inside the crushing chamber, achieving crushing through the impact force of the liners. This mode has higher crushing efficiency and is suitable for materials of medium hardness (such as limestone and marble), allowing for rapid fine crushing operations. The flexible switching between these two modes gives the VSI impact crusher a wider range of material adaptability.

Core Advantages Highlighted: Why is the VSI Impact Crusher More Popular?

Compared to traditional crushing equipment, VSI impact crushers have numerous irreplaceable advantages in terms of performance, efficiency, and product quality, which is also the key reason why they stand out in the market.

1.High crushing efficiency, large processing capacity

The VSI impact crusher features a high-speed rotating impeller design, with the impeller reaching speeds of several thousand revolutions per minute, allowing it to accelerate materials to a high velocity before throwing them out. This provides sufficient crushing force, achieving the desired fine crushing effect in a single pass without the need for multiple cycles. Additionally, the machine has a well-designed feed inlet with a wide feed size range, and its processing capacity per unit time far exceeds that of similar fine crushing equipment, effectively improving the operational efficiency of the entire production line.

2.The finished product has excellent granule quality and meets the standards.

Due to the use of the impact crushing principle, the forces acting on the material during the crushing process are evenly distributed, resulting in a final product with a cubic particle shape and very low needle-like particles, with a reasonable gradation. This advantage makes it particularly prominent in the field of manufactured sand production—the produced manufactured sand meets the national standards for construction sand and can replace natural sand in the production of concrete, mortar, and other building materials, addressing the issue of natural sand resource scarcity.

3. Good wear resistance and long service life

The core components of the equipment (such as impellers and wear-resistant liners) are made of high-quality wear-resistant materials, including high-chromium alloy and wear-resistant cast iron, and undergo special processing, resulting in high hardness and strong wear resistance. At the same time, under the 'stone-on-stone' mode, the material collides with itself, reducing direct friction between the material and equipment components, further decreasing equipment wear, extending the service life of core components, and reducing maintenance and spare parts replacement costs for the enterprise.

4. Energy-saving and environmentally friendly, meeting the requirements of green production

The VSI impact crusher adopts an advanced sealing design and noise reduction system, resulting in minimal dust leakage and low noise during operation, effectively improving the working environment. At the same time, the equipment's motor features an energy-saving design, with energy consumption far lower than that of traditional crushing equipment, meeting the national policy requirements for green and low-carbon production, and helping enterprises achieve environmentally compliant production.

5. Compact structure, easy operation and maintenance

The overall structure of the equipment is compact, occupying a small footprint, making it easy to install and arrange in confined spaces, which reduces the construction cost of the production line. In addition, the equipment's maintenance doors are designed reasonably and are easy to open, allowing staff to quickly inspect, maintain, and service the interior of the equipment. At the same time, the equipment is equipped with an intelligent control system, enabling automated operation, reducing manual intervention, and lowering operational difficulty.

Wide range of applications: meets crushing needs across multiple industries

With excellent performance, VSI impact crushers have a wide range of applications, almost covering the fine crushing demands in various fields such as mining, building materials, highways, railways, water conservancy, and construction waste processing.

1.Manufactured Sand Production Sector

This is the core application area of the VSI impact crusher. Whether it is hard rocks like granite, basalt, and river pebbles, or soft rocks like limestone and dolomite, they can all be crushed into standard manufactured sand using the VSI impact crusher. The produced manufactured sand has uniform particle size and stable quality, and is widely used in commercial concrete, ready-mixed mortar, road construction, and other projects.

2.Mining Industry

In mining operations, VSI impact crushers can be used for the fine crushing stage of ores, further breaking down coarse ores into particle sizes that meet beneficiation requirements. Their high crushing efficiency can enhance the overall capacity of mining production lines, while the excellent quality of the finished product provides a solid foundation for subsequent beneficiation processes. They are suitable for metal mines such as gold, copper, and iron, as well as non-metallic mines like granite and marble.

3.Construction waste resource recovery sector

With the advancement of policies for the resource utilization of construction waste, the VSI impact crusher has become the core equipment in construction waste processing lines. It can crush materials such as concrete blocks, bricks, and stones in construction waste into recycled aggregates. These recycled aggregates can be used to make recycled concrete, permeable recycled bricks, road base layers, and more, achieving the recycling of construction waste and reducing environmental pollution.

4. Highway and railway construction sector

In the construction of transportation infrastructure such as highways and railways, a large amount of crushed stone aggregate is required for subgrade filling and pavement laying. VSI impact crushers can crush various types of rocks to produce crushed stone aggregates of different specifications. The finished product has good particle shape and high strength, meeting the strict quality requirements for aggregates in transportation engineering and ensuring the quality of the project.

Shopping and Usage Tips

For enterprises, choosing the right VSI impact crusher and using it correctly can maximize the performance of the equipment and reduce production costs. Here are some practical suggestions:

1. Understand the material characteristics: Select the appropriate crushing mode and equipment model based on the hardness, moisture content, feed size, and other characteristics of the material. For example, the 'stone-on-stone' mode is preferred for crushing hard materials, while the 'stone-on-iron' mode can be used for crushing softer materials.

2. Match production capacity requirements: Choose the equipment model according to the overall capacity planning of the production line, to avoid having equipment that is either too large or too small, which could affect the overall efficiency of the production line.

3. Emphasize routine maintenance: Regularly inspect and maintain core components such as the impeller, wear-resistant liners, and bearings, and replace heavily worn parts in time. Meanwhile, pay attention to lubrication and cleanliness to ensure normal operation of the equipment.

4. Choose reputable manufacturers: When purchasing a VSI impact crusher, select a manufacturer with complete qualifications, strong technical capabilities, and comprehensive after-sales service to ensure equipment quality and subsequent maintenance support.

Conclusion

Under the trend of the crushing industry moving towards efficient, green, and high-quality development, the VSI impact crusher has become the preferred fine crushing equipment for more and more enterprises due to its high crushing efficiency, excellent product quality, wide range of applications, and energy-saving and环保 advantages. Whether it's for manufactured sand production, mining operations, or construction waste recycling, the VSI impact crusher can play an important role and empower the industry's development.

If you are planning a crushing production line and want to learn more about the selection, configuration, pricing, and other information regarding VSI impact crushers, feel free to leave a comment and join the discussion. We will provide you with professional solutions!
