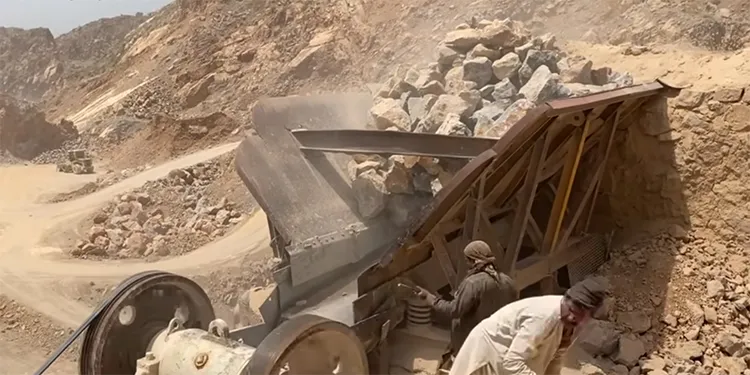

Crusher blockages (common in Jaw, Cone, and Impact Crushers) are serious operational issues. The core principle for handling them is “Safety First, Prevention Always.”

Step 1:  Emergency Safety Shutdown (E-Stop & LOTO)

1. Stop Feeding Immediately: Shut down all upstream feeders and conveyors to prevent more material from entering and worsening the crusher blockage.

2. Complete Shutdown and Lockout/Tagout (LOTO):

   • Press the emergency stop button on the crusher host.

   • Crucial Step: Disconnect the main power supply and execute the Lockout/Tagout (LOTO) procedure. Ensure no one can accidentally restart the equipment during cleaning.

Step 2:  Diagnose the Blockage Cause

Quick diagnosis facilitates efficient removal:

• Material Issues: High moisture/clay content? Tramp iron or oversized feed?

• Equipment Issues: Downstream conveyor or screen failure? Improper Closed Side Setting (CSS)? Uneven wear of liners/jaws/hammers?

• Operational Issues: Surge feeding or non-uniform feed rate?

Step 3:  Safe Clearing of the Blockage

Critical Note: NEVER use hands to clear the blockage!

1. Jogging/Reversing (If Feasible):

   • For Jaw Crushers, in the LOTO state, use a professional pry bar or hydraulic device to reverse the flywheel motion, moving the swing jaw back to release the jammed material.

2. External Clearance:

   • Use long steel bars, pry tools, or hooks from the discharge opening or inspection ports, clearing material progressively from bottom to top, outside to inside.

3. Internal Clearance (If Necessary):

   • If the blockage is severe, the crushing chamber cover must be opened.

   • Strictly follow Confined Space Entry safety protocols: ventilation, gas testing, safety harness, and dedicated full-time observer.

   • Thoroughly remove all jammed stones and tramp material.

Step 4:  Restart and Test Run

1. Ensure no tools or debris remain inside the crushing chamber.

2. Remove LOTO devices and restore power.

3. Start the crusher under no-load conditions for 2-3 minutes, checking for abnormal noise or vibration.

4. Once stable, slowly and uniformly begin feeding, gradually increasing to normal capacity.
