In fields such as mining and building materials processing, crushing equipment is the 'heart' of the production line, and its performance directly determines production efficiency, product quality, and overall costs. As the industry's demand for efficient, energy-saving, and intelligent equipment continues to rise, the single-cylinder hydraulic cone crusher, with its unique structural design and excellent operational performance, has gradually become a 'mainstay' in the crushing sector. Today, let's take a comprehensive look at this high-efficiency crushing equipment and see what makes it stand out.

Single-cylinder hydraulic cone crusher: What is its working principle?

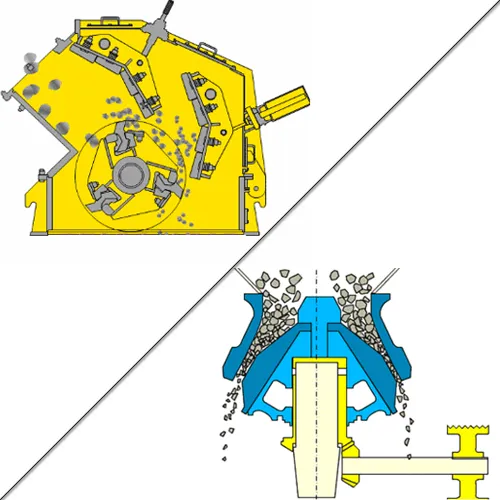

The core working logic of the single-cylinder hydraulic cone crusher is based on the principle of "laminated crushing." Compared with traditional impact crushing, it can more precisely control the crushing size while reducing energy consumption. Its working process can be simply divided into three main steps:

Power transmission: The motor drives the eccentric sleeve through a V-belt and drive shaft. The eccentric motion of the sleeve drives the movable cone to oscillate periodically (toward or away from the fixed cone);

Crushing operation: When the movable cone approaches the fixed cone, the material between them is subjected to a combination of compression, shear, and bending forces, gradually being crushed to the required size;

Discharge completion: When the movable cone moves away from the fixed cone, the crushed material is discharged from the bottom outlet of the crushing chamber under gravity, completing a crushing cycle.

It is worth mentioning that the hydraulic system of the single-cylinder hydraulic cone crusher not only provides overload protection but also can precisely control the product size by adjusting the discharge opening. When uncrushable objects (such as iron blocks) enter the crushing chamber, the hydraulic system automatically releases pressure, pushing the movable cone back to let the foreign object exit, then automatically resets, preventing equipment damage and greatly improving operational safety.

Core Advantages: Why Are Single-Cylinder Hydraulic Cone Crushers More Popular?

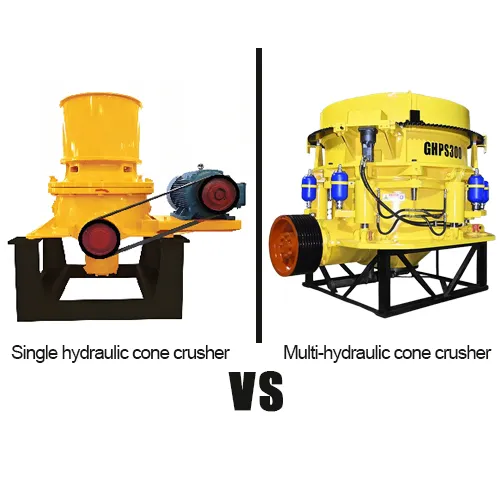

Compared to multi-cylinder hydraulic cone crushers, jaw crushers, and other similar equipment, the advantages of single-cylinder hydraulic cone crushers are very prominent, especially suitable for medium and fine crushing operations, specifically reflected in the following aspects:

1.Compact structure, takes up little space, easy to install

The single-cylinder hydraulic cone crusher features an integrated design, combining the hydraulic system, lubrication system, and main machine into one unit. Compared to multi-cylinder models, it has a simpler structure, smaller size, and can reduce the footprint by about 30%. This advantage makes it more suitable for small- to medium-sized mines or production line upgrade projects with limited space. At the same time, the installation process is simplified, eliminating the need for complex foundation work and significantly shortening the commissioning period.

2. High crushing efficiency, stable output

Relying on an optimized crushing chamber design (such as a deep cavity crushing chamber), the single-cylinder hydraulic cone crusher can handle larger feed sizes and achieve a higher crushing ratio. At the same time, the material's residence time in the crushing chamber is more reasonable, reducing repeated crushing and significantly improving crushing efficiency. Data shows that with the same power, its capacity is 15%-25% higher than that of traditional cone crushers, and the final product has a uniform particle size and reasonable gradation, meeting subsequent processing requirements directly.

3.Runs stably, has a low failure rate, and low maintenance costs

The design of the single-cylinder hydraulic system simplifies the equipment's transmission structure and reduces the number of wear-prone components. At the same time, the overload protection function of the hydraulic system effectively prevents damage to the equipment caused by foreign object impact or overload. In addition, the equipment's lubrication system uses a centralized lubrication design, which can accurately lubricate key components (such as the eccentric sleeve and bearings), reduce wear, and extend component lifespan. Overall, its failure rate is more than 20% lower than that of multi-cylinder models, and annual maintenance costs can be reduced by 15% to 30%.

4. Highly intelligent and easy to operate

Modern single-cylinder hydraulic cone crushers are commonly equipped with intelligent control systems, allowing for remote operation, automatic adjustment of the discharge opening, and real-time monitoring of equipment operating conditions (such as oil temperature, oil pressure, and motor load). Operators do not need to be on-site, as they can precisely control the production process through the control system. When the equipment encounters an abnormality, the system automatically issues an alarm and indicates the cause of the fault, greatly reducing operational difficulty and labor costs.

Applicable scenarios: Which industries can't do without it?

The single-cylinder hydraulic cone crusher, with its excellent medium and fine crushing performance, is widely used in multiple fields such as mining, building materials processing, road construction, and water conservancy projects. It is especially suitable for processing materials with higher hardness. Specific applicable scenarios include:

Metal mines: Used for crushing high-hardness metal ores such as iron ore, copper ore, and lead-zinc ore, providing qualified crushed materials for subsequent beneficiation operations;

Non-metallic mines: Handles non-metallic minerals such as granite, basalt, limestone, and quartz, which can be used to produce construction aggregates, manufactured sand, and other products;

Construction and road building: Plays a core role in crushing tasks for projects such as recycling construction waste and processing stone materials for highway and railway subgrade construction;

Water conservancy and chemical industries: Used for stone material processing in water conservancy projects and pre-crushing of raw materials in the chemical industry.

Selection and Maintenance: How to Maximize the Value of Your Equipment?

To ensure the long-term stable operation and maximize the production capacity of a single-cylinder hydraulic cone crusher, proper selection and scientific maintenance are essential. The key points are as follows:

1. Selection Tips

Select based on material characteristics: Choose the appropriate crushing chamber type and model based on the hardness, moisture content, and particle size of the material. For example, when processing high-hardness materials, select liners with higher wear resistance and machines with greater power.

Select based on capacity requirements: Choose equipment specifications according to the designed production capacity of the production line, avoiding situations where a large machine is pulling a small load or a small machine is pulling a large load, ensuring capacity matches the demand.

Consider site and environmental requirements: Choose the equipment size according to the available space, while paying attention to noise and dust emission levels, and select models that meet environmental standards.

2. Maintenance Points

Daily inspections are essential: Before starting the machine each day, check the hydraulic system pressure, lubrication system oil level, liner wear, and whether fasteners are loose, and address any issues promptly.

Regular lubrication and maintenance: Follow the equipment manual to regularly change the lubricating oil, ensuring the lubrication system is functioning properly and preventing wear on core components due to poor lubrication.

Timely replacement of wear parts: Worn parts such as liners and eccentric sleeves should be replaced in time to avoid affecting crushing efficiency and product quality, while also reducing damage to other equipment components.

Keep the equipment clean: Regularly clean dust and debris from the surface and interior of the equipment to prevent dust accumulation from affecting heat dissipation and operational stability.

Summary: Development Trends of Single-Cylinder Hydraulic Cone Crushers

With the advancement of intelligent and green development trends in the mining industry, single-cylinder hydraulic cone crushers are continuously being upgraded and iterated, and in the future, they will move towards higher efficiency, greater energy savings, and enhanced intelligence. For example, integrating Internet of Things technology can achieve full lifecycle management of the equipment, using new wear-resistant materials can reduce maintenance costs, and optimizing structural design can further improve crushing efficiency.

For mining and processing companies, choosing a suitable single-cylinder hydraulic cone crusher can not only improve production efficiency and reduce overall costs but also lay a solid foundation for the long-term development of the enterprise. It is hoped that this introduction can help everyone better understand this equipment. If you need further information on selection details or technical parameters, feel free to leave a message and communicate!
