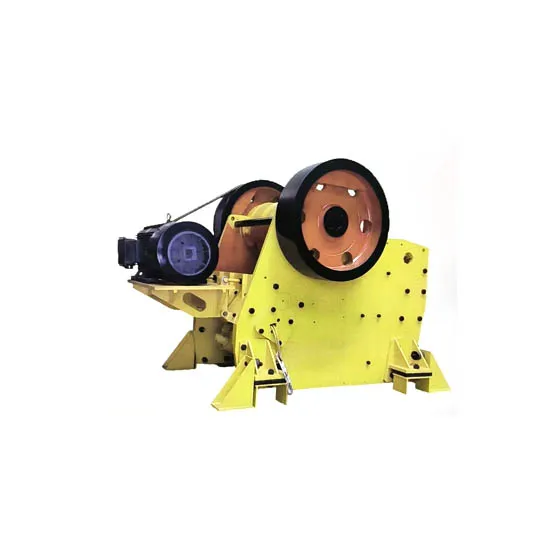

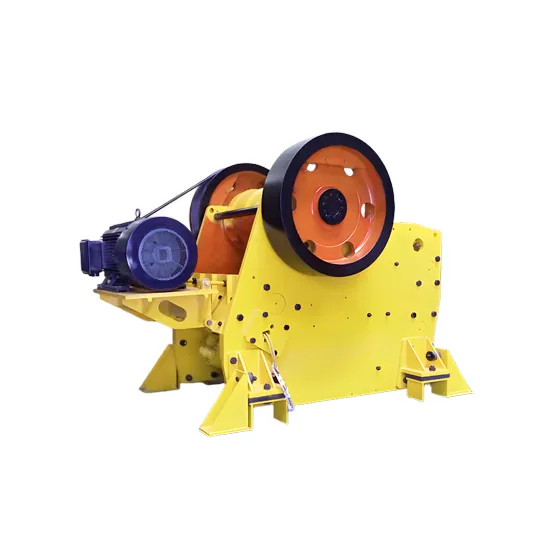

PEV series jaw crusher adopts big centrifugal force and high crushing frequency design, so the bottom effective stroke is very big. It can process more material and products are more fine than other jaw crusher. The integrated design of the main machine and motor make the PEV jaw crusher more compact, simple installation.

Product Advantage

1. V-shaped crushing cavity: The V-shaped cavity structure makes it easier to discharge materials, less likely to cause material blockage, and less likely to jump. It improves the crushing capacity and increases the crushing efficiency.

2. Discharge port adjustment: The wedge is used to adjust the discharge port, which can achieve stepless speed regulation. Compared with gasket adjustment, it is simpler, safer and faster. There is no need to stop the machine, which greatly reduces worker labor intensity and downtime, and improves efficiency.

3. Reliable quality: The casting body makes it more sturdy and durable; the integrated bearing seat design increases the radial strength and load-bearing capacity of the bearing seat, and cooperates with the effective labyrinth seal. Greatly extends the service life of the bearings.

4. Reasonable structure: integrated motor structure, the motor is mounted on the frame, making it easier to install and reducing the installation space.
