I、Introduction: Why is the PE jaw crusher considered the 'first line of defense' in a crushing production line?

In fields such as mining, construction waste processing, and road construction, the crushing stage is one of the core processes, and the PE jaw crusher has always held a central role in 'primary crushing' stage, Whether it is extremely hard granite or basalt, or medium-hard limestone and pebbles, it can efficiently perform coarse crushing, laying the foundation for subsequent fine crushing and sand-making processes.

As one of the most widely used crushing equipment, the PE series jaw crusher has become the first choice for many companies due to its simple structure, large crushing ratio, and high reliability. However, many practitioners often encounter various questions when selecting, using, or maintaining PE jaw crusher: How should different models of PE jaw crushers be chosen? How can the lifespan of wear parts be extended during daily use? This article will provide a comprehensive analysis of the key knowledge points of PE jaw crushers.

II、In-Depth Understanding: The Core Advantages and Working Principle of the PE Jaw Crusher

1. Working Principle: Simple and Efficient 'compression Crushing'

The working principle of the PE jaw crusher is not complicated; it primarily relies on the relative motion between the moving jaw and the fixed jaw to achieve material crushing. The motor drives the eccentric shaft via a belt pulley, and The eccentric shaft drives the moving jaw to swing periodically: when the moving jaw approaches the fixed jaw, the material between the two jaw plates is crushed under the forces of compression, shearing, and bending; when the moving jaw moves away from the fixed jaw, the crushed material is discharged from the discharging port under the action of gravity, completing one crushing cycle.

2. Core Advantage: Hard Power Adaptable to Multiple Usage Scenarios

High crushing ratio and uniform discharge: The PE series jaw crusher has a crushing ratio of 4-6, capable of directly crushing large materials to particle sizes that meet the requirements of subsequent processes, with uniform discharge size and no need for additional screening.

Wide applicability of materials, strong hardness adaptability: Can handle various rocks and ores with a compressive strength not exceeding 320 MPa. Whether it's hard rocks like granite and basalt, or soft rocks like limestone and shale, it can crush them efficiently.

Simple structure, easy maintenance: It adopts a modular design with few core components, making assembly and disassembly convenient. Routine maintenance only requires focusing on key parts such as the jaw plates, eccentric shaft, and bearings, reducing maintenance costs and downtime.

Stable operation, high reliability: The machine body is welded with high-strength steel, providing strong impact resistance; key bearings and seals are made of high-quality components, capable of long-term continuous operation in harsh conditions such as mines.

III、Application scenarios: These fields cannot do without the PE jaw crusher.

The 'primary crushing' attribute of the PE jaw crusher determines its core position in many industries. The following are the most common application scenarios:

1. Mining Industry

In the mining of metal and non-metal ores such as gold, copper, iron, and coal, the PE jaw crusher is used to crush large raw ore extracted from the mine into sizes that can enter subsequent equipment such as ball mills and cone crushers. It is the 'first checkpoint' in the mining crushing production line.

2.Building materials industry

In concrete mixing plants and sand and gravel aggregate factories, PE jaw crushers are used to crush raw materials such as limestone, cobblestones, and granite to produce aggregates that meet the standards for construction sand and gravel; at the same time, they can also be used for construction waste treatment, crushing and recycling discarded concrete, bricks, and other materials to achieve resource recycling.

3.Roads and Infrastructure Engineering

In large infrastructure projects such as highways, railways, and airport runways, a large amount of high-quality crushed stone aggregate is required. PE jaw crushers can crush local raw materials on-site, reducing raw material transportation costs while ensuring the quality of the aggregate to meet construction requirements.

4.Chemical and Metallurgical Industry

In the chemical industry, it is used to crush chemical raw materials such as gypsum and salt mines; in the metallurgical industry, it is used to crush materials such as iron ore and steel slag, providing qualified raw materials for subsequent smelting processes.

IV、Model Selection Guide: 3 Key Dimensions for Choosing the Right PE Jaw Crusher

Choosing the right PE jaw crusher can directly improve production efficiency and reduce costs. Many industry practitioners often fall into the misconception that 'bigger models are better.' In fact, selection should be based on actual needs, focusing on the following three dimensions:

1.Clarify material characteristics

First, it is important to clarify the type, hardness, and moisture content of the material to be processed: for example, when handling hard rocks like granite, models with wear-resistant jaw plates and high machine body strength should be chosen; for materials with high moisture content (such as ores with high clay content), it is necessary to select machines with discharge ports that are less prone to clogging and to equip them with dustproof and waterproof devices.

2.Determine the required output and discharge particle size

Output is one of the key indicators for model selection, and the output of different models of PE jaw crushers varies greatly (ranging from a few tons per hour to several hundred tons). At the same time, it is important to clarify the requirements for the discharge size in subsequent processes. The crusher's discharge opening can be adjusted (most PE series use shim or wedge adjustment, which is easy to operate) to match the needs. For example, when used for aggregate production, the discharge size needs to be controlled at 50-100mm; when used for coarse crushing before fine crushing in mining, the discharge size can be controlled at 100-200mm.

3. Consider operating conditions and supporting equipment

Select the model based on factors such as the space available at the production site, power supply conditions, and transportation methods: for example, if the site has limited space, a compact model can be chosen; at the same time, it is necessary to consider compatibility with subsequent equipment (such as cone crushers and impact crushers) to ensure balanced capacity throughout the production line.

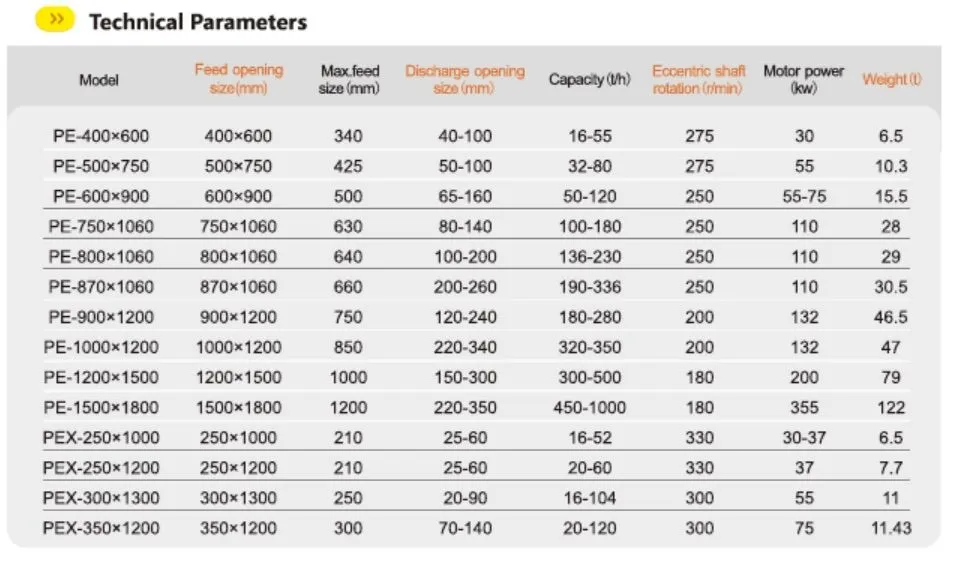

Appendix: Reference for Common PE Jaw Crusher Models

V、Maintenance Tips: Extend Equipment Life and Reduce Operating Costs

The service life of a PE jaw crusher is closely related to daily maintenance. Paying attention to the following points can effectively reduce malfunctions and extend the lifespan of wear parts:

Regularly check the lubrication system: rotating parts such as bearings and eccentric shafts need to be regularly lubricated (generally using lithium-based grease) to ensure adequate lubrication and prevent component wear; at the same time, check if the oil passages are clear and promptly clear any blockages.

Replace worn parts in time: Jaw plates, side guards, and thrust plates are easily worn components. During use, regularly check for wear, and when the wear reaches the limit, replace them promptly to avoid affecting crushing efficiency and discharge quality.

Operate according to standard procedures to avoid overloading: It is strictly forbidden to feed materials that exceed the maximum particle size into the equipment, and metal blocks or large debris should not be mixed with the materials to prevent equipment overload or component damage. Before starting the equipment, run it empty to check for any abnormalities, and only feed materials after confirming that everything is normal.

Regularly clean the equipment and take protective measures: After production, promptly clean any residual materials inside the equipment to prevent material caking and blockage; in dusty conditions, use dust covers to reduce wear on equipment components caused by dust.

VI、Conclusion: Choose the right PE jaw crusher to make crushing production more efficient

As the core equipment of a crushing production line, the model selection, use, and maintenance of the PE jaw crusher directly affect the efficiency and cost of the entire production line. Through the analysis in this article, it is hoped to help everyone gain a more comprehensive understanding of the PE jaw crusher, choose the right model in actual production, operate it properly, and maintain it well.

Note: If your production scenario has special requirements (such as handling high-moisture materials, high output demands, etc.), feel free to leave a comment and share your specific needs. We will provide you with more precise selection advice!
